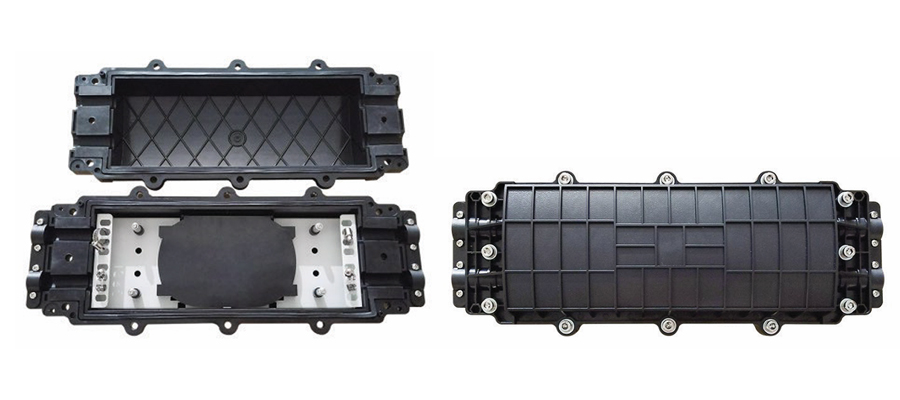

DESCRIPTION:
CH005 has 4 fiber cable in-out round ports for the cable diameter Ф7-Ф18mm entry. It is widely applied
to the splicing and distributing variable optical cables. It is made of high-quality ABS plastic and with
the mechanical seal structure filled with the seal material. The external component and fastening piece
are all made of the high-quality steel. It can be opened after sealing and can be reused without
changing sealing material, with silicone rubber insulation tape.
Application: Aerial -hanged, Wall-mounting
| Dimension (mm) | 466.5×179.8×120.6 |
| Weight (Kg) | About 2.7 |
| Cable diameter | Φ7-Φ18mm |
| Cable entry ports | 2 in 2 out |
| Max Capacity of splice tray | 6pcs |
| Max Capacity | 72 (single layer tube) 144 (double layer tube) |
| Sealing structure | silicon gum material or sticky cincture |
ACCESSORIES:
Splice protector sleeve
Silicon gum material
Sticky cincture
Cable ties
Sealing washer
Allen wrench
Insulated rubber belt
ORDER INFORMATION:
| Part Number | Description |
| CHOO5 | Horizontal Fiber Optic Splice Closure CHOO5 |
