DESCRIPTION:

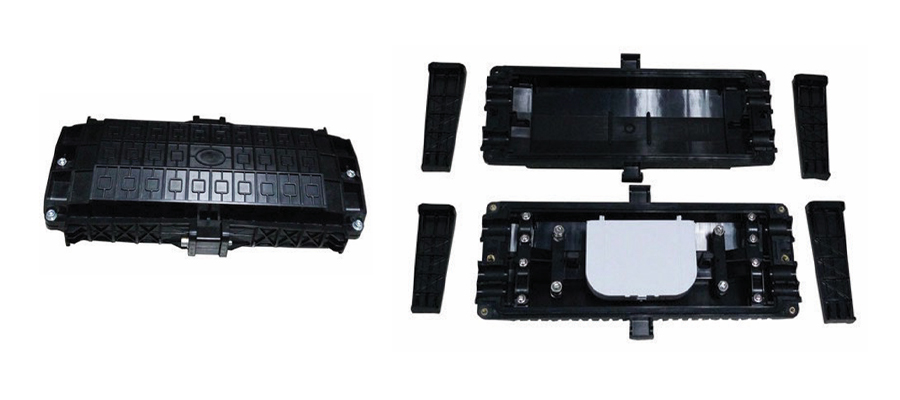

CH019 has 6 fiber cable in-out round ports for fiber splicing and protection. It is widely applied to the
splicing and distributing variable optical cables. It is made of the high-quality ABS and with the
mechanical sealing structure filled with the sealing material. It can be opened after sealing and can be
reused without changing sealing material.
Application: Aerial -hanged, Wall-mounting
| Dimension | 400*200.2*107mm |
| Cable diameter | 2 port Ф22mm, 2 port Ф20mm, 2 port Ф16mm |
| Cable entry ports | 3 in 3 out |
| Max Capacity of splice tray | 4pcs ( 6 slots per tray) |
| Max Capacity | 24cores/ 48cores (2 fibers in one slot) |
ORDER INFORMATION:
| Part Number | Description |
| CH019 | Horizontal Fiber Optic Splice Closure CH019 |
