DESCRIPTION:

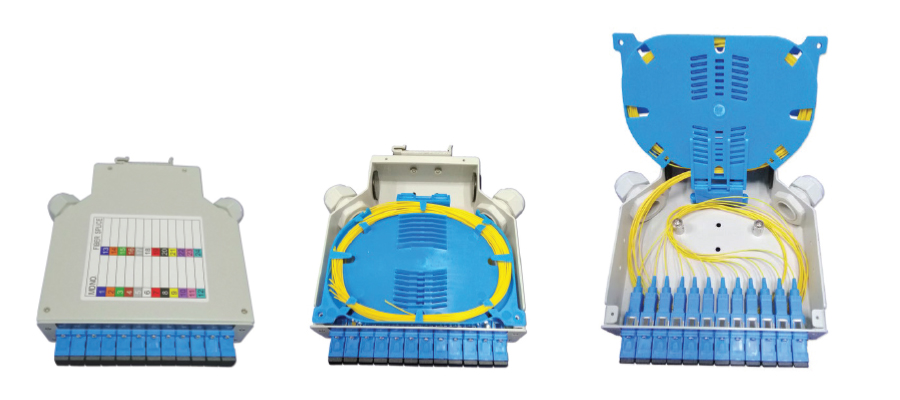

Din Rail Mounted Fiber Optic Terminal Box Din-00
FEATURES:
Reasonable design, aluminum box, light weight
Electrostatic powder painting, grey or black color
ABS plastic blue splice tray, rotatable design, compact structure
Max. 24 fibers capacity
FC, ST, LC, SC … different adapter port available
DIN rail mounted application
SPECIFICATION:
| Model | Dimension | Material | Adapter port | Splicing capacity | Cable port | Application |
| DIN-00 | 133×136.6x35mm | Aluminum | 12 SC simplex | Max. 24 fibers | 4 ports | DIN rail mounted |
ACCESSORIES:
| Item | Name | Specification | Unit | Qty |
| 1 | Heat shrinkable protection sleeves | 45*2.6*1.2mm | pcs | As per using capacity |
| 2 | Cable tie | 1.9*120mm white | pcs | 2 |
ORDER INFORMATION:
| Part Number | Description |
| DIN-00 | Din Rail Mounted Fiber Optic Terminal Box Din-00 |
