DESCRIPTION:

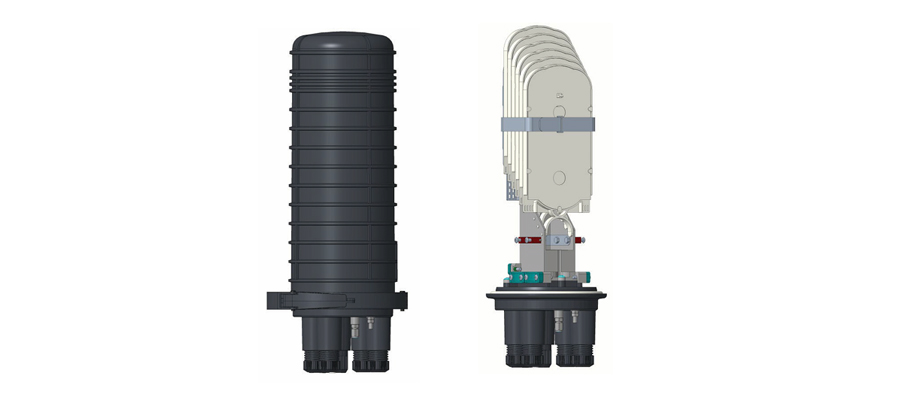

Fiber optic splice closure is widely applied to the splicing, distributing variable optical cables and splitting. The solid box
shell and the main structure can endure harsh environment.It protect the fiber optic cable from
vibration,impact,stretches,twists. The closure can work in -35℃~70℃ environment,cold and heat resistance,electrical
insulation,chemical corrosion resistance.
FEATURES:
Material:High impact PP plastic+UV resistance agent.
Capacity:Use OST-062 tray,Each tray for 24fiber splicing.Max. for 6 trays,144cores.
Cable ports:6pcs Ø18mm ports(2pcs Ø12mm extra spare parts)
Sealing:Mechanical sealing
IP grade:IP68
SPECIFICATION:
| Item | Name | Specification | Unit | Qty |
| 1 | Transparent tube | Out diameter Φ4mm Thickness 0.6mm | M | 1 |
| 2 | Cable tie | 3mm*120mm/white | PCS | 12 |
| 3 | Internal hexagonal wrench | S5/black/N | PCS | 1 |
| 4 | Heat shrinkable tube | 60MM*2.3*1.0/N | PCS | 144 |
| 5 | Cable port sealing plug C | CV024-11/30° TPE/black | PCS | 2 |
| 6 | Aerial kits | stainless steel | SET | 1 |
ORDER INFORMATION:
| Part Number | Description |
| Cv024 | Fiber Optic Splice Closure Model-Cv024 |
