DESCRIPTION:

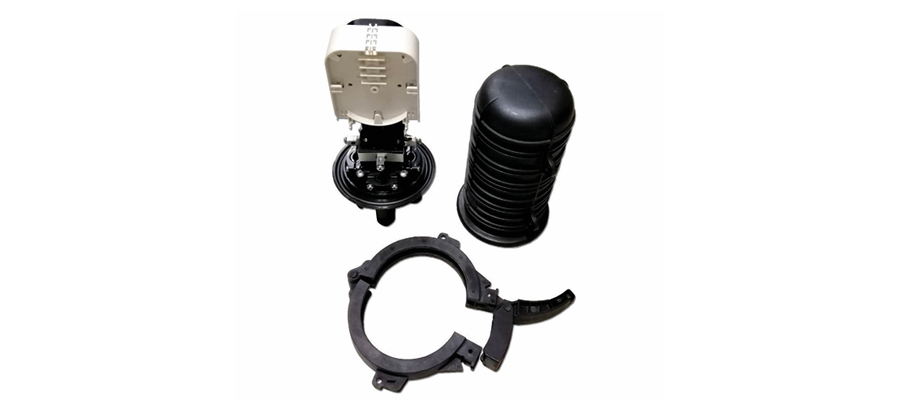

CV010 is a small size fiber optic splice closure that used for fiber optic cable splicing and protection.
FEATURES:
1) Splice tray: 4PCS, each 12core.
2) Cable port: 4cable ports, 3pcs(φ18mm),1pcs ellipse cable port( cable no cutting).
3) Seal: all cable port is heat shrink seal.
4) Waterproof: IP68
5) Material: high impact resistance PP with UV
6) Wall-mounting, aerial hanger and pole mounting.
SPECIFICATION:
| Model | Material | Dimension | Max. capacity | Splice tray |
| CV010 | PP | Φ146*300.5 | 48 fibers | 4 pcs |
ORDER INFORMATION:
| Part Number | Description |
| CV010 | Dome Fiber Optic Splice Closure Cv010 |
