DESCRIPTION:

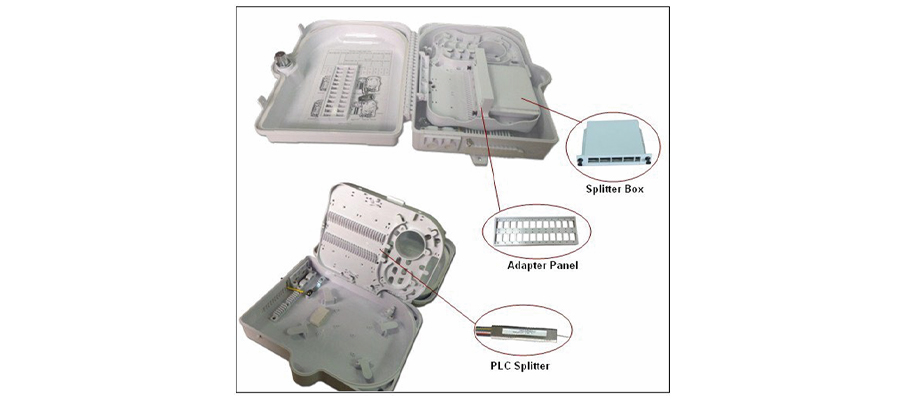

The fiber optic terminal box is suitable for optical fiber splitting/splicing using. It is
reasonable design for fiber arrangement, and its bend radius is more than 30mm.
FEATURES:
Industry Standard User Interface, be made of ABS plastic.
Can accommodate 1×4,1×8,1X16, 2×4,2×8 & 2×16 PLC steel tube splitter.
Rainfall resistant, outdoor using.
Can load 24pcs LC, FC, ST, SC … adapters.
Wall mounting and pole mounting application.
2pcs cable entry ports; cable can be entry without cutting.
24pcs exit ports for FTTH drop cable.
SPECIFICATION:
| Model | Capacity | Dimension | Remark |
| OTB-0216-E | Max. 24fibers | 274.3×313.4×114.1mm | Can load max.2pcs splitter box Can load max.24pcs SC simplex, FC simplex, LC duplex … adapters |
ACCESSORIES:
FTTH access network.
Telecommunication Networks
CATV Networks
Data Communications Networks
ORDER INFORMATION:
| Part Number | Description |
| Otb-0216-E | Fiber Optic Terminal Box Otb-0216-E |
