DESCRIPTION:

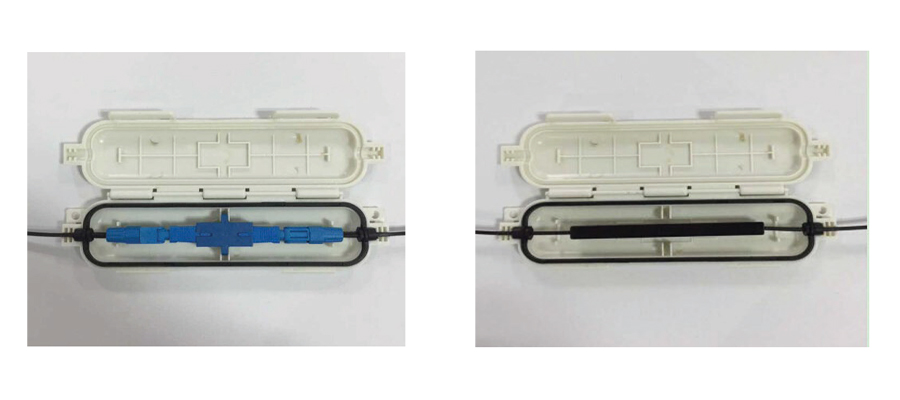

Drop Cable Protect Box is used for drop cable connecting, splice and protection.Inside can install
1pc SC simplex adapter and 2pcs fast connector connection. The box is made of High quality
ABS Material.Box cover and bottom utilize silicone rubber ring sealing.Boths side can lead in/out
2*3mm FTTH drop cable or 3mm round cable.Wall-mount application,two installation hole
distance is 150mm.
FEATURES:
1.Fast connecting,Waterproof IP64
2.Small size, nice shape, convenient Installation.
3.Splice contact protection is stable&reliable,Protect it from damage or broken by external force
OTHERS:
1.Size: 160*48*16mm
2.Material: High quality ABS Material
3.Net weight:40g.
4.Product configuration:
| Name | Specification | Qty(pcs) | Remark |
|---|---|---|---|
| Nylon cable tie | 3*120mm | 2pcs | free |
| Plastic expansion tube | ￠6mm | 2PCS | free |
| Tapping screw | C type 4*20 | 2PCS | free |
| Fiber optic connector, fast connector, Mechanical splicer optional. | |||
Packing information:
| Qty/CTN | Carton size | Gross Weight | MOQ |
| 270PCS | 53.5*36.5*45cm | 14KG | 100PCS |
ORDER INFORMATION:
| Part Number | Description |
| PFB-MINI | Ftth Drop Cable Protection Box PFB-MINI |
