DESCRIPTION:
Connector type: LC
Polish type: PC or UPC
Cable: MM62.5, PVC jacket
Cable diameter: Ø 0.9mm
Length: 2m
FEATURES:
High return loss
Excellent mechanical endurance
Good in repeatability and exchangeability
APPLICATION:
♦ Telecommunications
♦ FTTX
♦ CATV
♦ Optical communication system
PARAMETER:
| Parameter | Unit | Standard & Requirement (PC or UPC polishing) |
|---|---|---|
| Insertion Loss (Typical) | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 30 |
| Exchangeability | dB | ≤ 0.2 |
| Durability | Time | > 1000 |
| Vibration | dB | ≤ 0.2 |
| Operating Temperature | ℃ | -40 ~ +75 |
| Storage Temperature | ℃ | -45 ~ +85 |
ORDER INFORMATION:
| Part Number | Description |

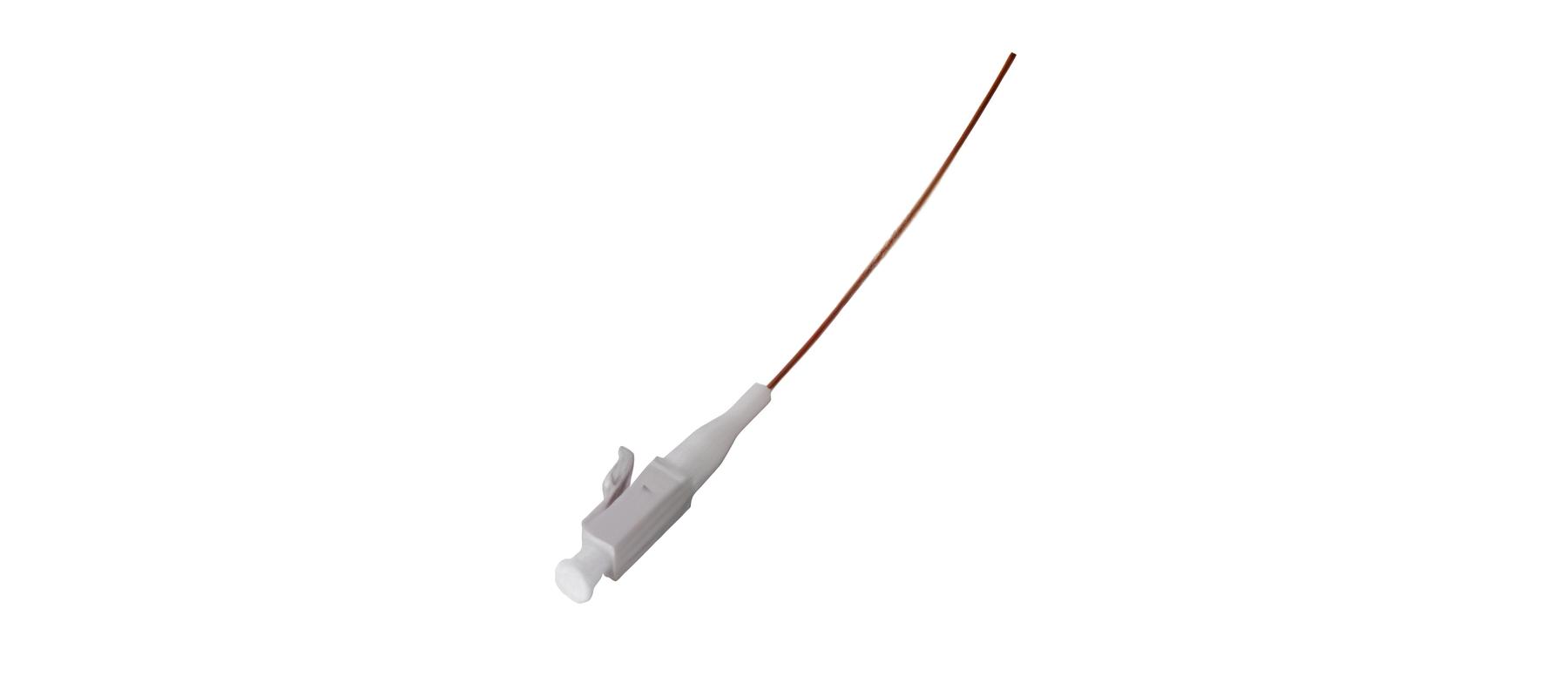

| LC/UPC/MM62.5/0.9-2M | Fiber Optic Pigtail LC/UPC/MM62.5/0.9-2M |
