DESCRIPTION:
Fiber optic adapters are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection

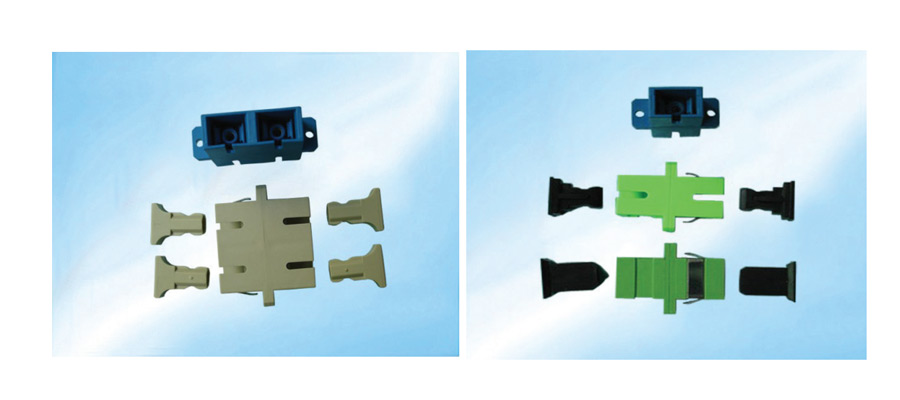

All SC fiber optic adapters are with zirconia sleeve. SC fiber optic adapters are available with both simplex adapters and duplex adapters
FEATURES:
Discordia, ANSI,TIA/EIA,NTT and JIS compliance High precision alignment
Low insertion loss
High return loss
Good repeatability
Good changeability
Good temperature stabilization
MATERIAL:
Sleeve material: Zirconia
Housing Material: High Quality Plastic
APPLICATION:
CATV System Telecommunications
Optical Networks
Testing / Measurement Instruments Fiber to the Home
PARAMETER:
| Description | Item NO. | Test Item | Unit | SC Fiber Optic Adapter Standard & Requirement | |||
|---|---|---|---|---|---|---|---|
| SM PC | SM UPC | SM APC | MM PC | ||||
| 1 | Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | |
| 2 | Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | |
| 3 | Exchangeability | dB | ≤0.2 | ||||
| 4 | Repeatability | dB | ≤0.2 | ||||
| 5 | Durability | Time | >1000 | ||||
| 6 | Operating Temperature | °C | -40 ~ +75 | ||||
| 7 | Storage Temperature | °C | -45 ~ +85 | ||||
ORDER INFORMATION:
| Part Number | Description |
| Adapter | Cabcomm-SC Fiber Optic Adapter |
