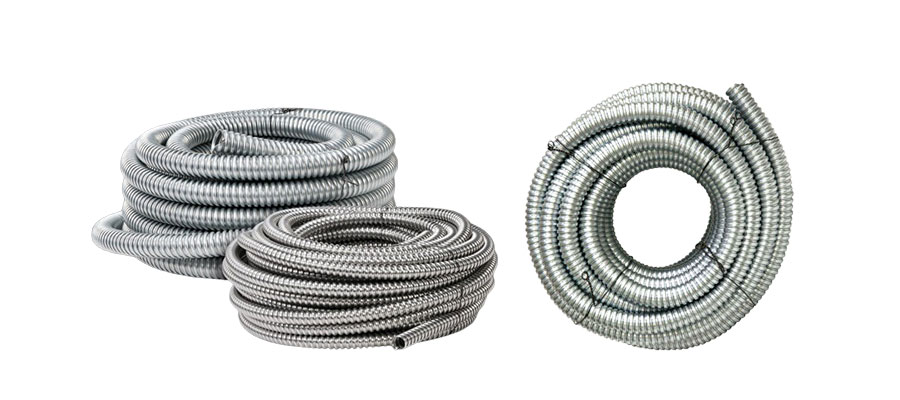

Galvanised Steel Flexible Conduit

  • Home
  • Galvanised Steel Flexible Conduit
Galvanised Steel Flexible Conduit02

DESCRIPTION:

A Galvanised Steel Flexible Conduit is a flexible metallic tubing made from galvanized steel strips wound together to create a strong yet bendable protective covering for electrical cables and wires. The galvanization process adds a protective zinc coating that helps resist corrosion, rust, and environmental damage.

Unlike rigid conduits, flexible conduits can bend and adapt easily around corners, machinery, and confined spaces, making installation much easier and more efficient.

SPECIFICATION:

CAT# Trade Size Internal Diameter Min (MM) Internal Diameter Max (MM) Outer Diameter Min (MM) Outer Diameter Max (MM) Min Bend Radius (MM)
FMC-US 01 3/8″ 9.6 9.9 14.3 15.5 60
FMC-US 02 1/2″ 15.9 16.4 21.9 23.4 75
FMC-US 03 3/4″ 20.6 21.2 26.6 28.0 85
FMC-US 04 1″ 25.4 26.4 33.0 35.1 110
FMC-US 05 1-1/4″ 31.8 33.0 39.4 41.4 130
FMC-US 06 1-1/2″ 38.1 40.0 46.9 49.6 150
FMC-US 07 2″ 50.8 52.9 59.7 62.2 190

ORDER INFORMATION:

Part Number Description
FMC-US 01 CABCOMM 1 –Galvanised Steel Flexible Conduit
FMC-US 02 CABCOMM 2 – Galvanised Steel Flexible Conduit
FMC-US 03 CABCOMM 4 – Galvanised Steel Flexible Conduit
