DESCRIPTION:

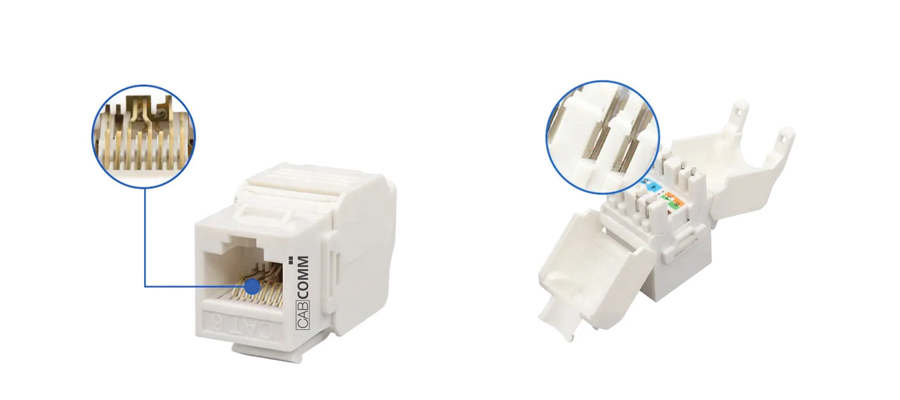

Category 6A UTP Keystone Jack Toolless.
SPECIFICATION:
| Colour | White, Blue, Orange, Black |
| Housing Material | PC |
| Contact Material | Phosphor Bronze with Nickel Plated |
| IDC Cap | PC with Optional Colour |
| Termination Type | Toolless |
| Angle | 180 Degree |
| IDC Wire Gauge | 22-26 AWG |
| Wiring Scheme | T568A/T568B |
| Inserting Duration | 750 Times |
| IDC Life | 250 Times |
| Standard | ANSI/TIA/EIA 568A & 568B, IEEE PoE (Type 1,2,3) |
| Temperature – Operation | -10 °C to +60 °C |
| Temperature – Storage | -20 °C to +70 °C |
| Jack Type | UTP |
| Connector Type | RJ45 |
| Application | Indoor |
| Cable Type | Unshielded |
ORDER INFORMATION:
| Part Number | Description |
| CC-M-45-6ASX01 | CABCOMM Category 6A UTP Keystone Jack Toolless |
